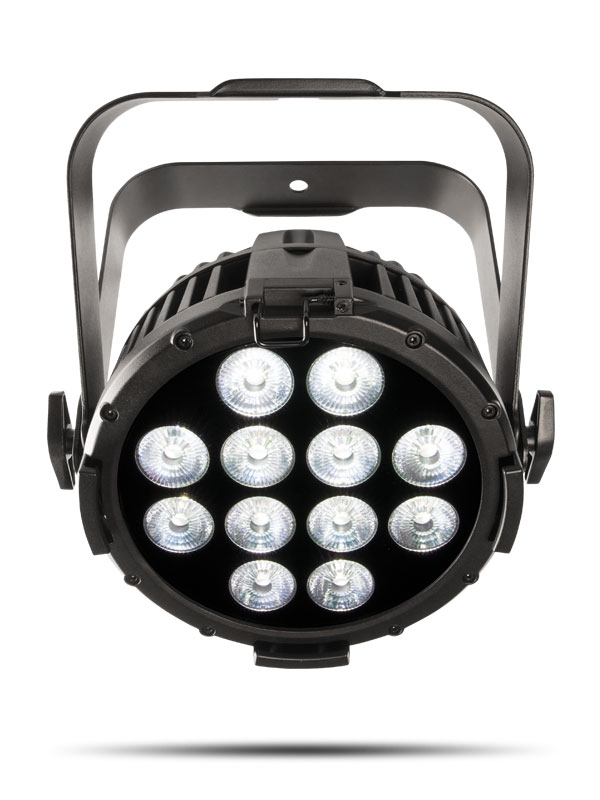

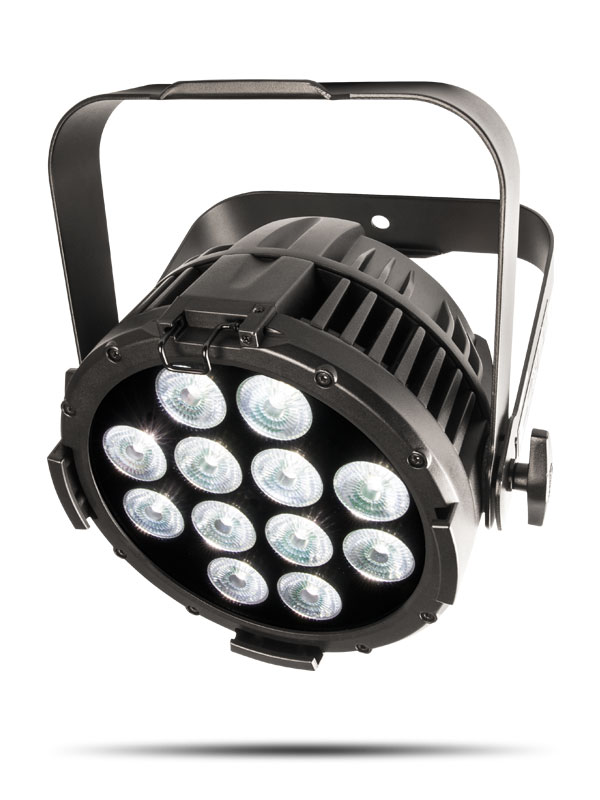

COLORdash Par H12IP

A compact yet powerful IP-rated wash fixture utilizing hex-color RGBWAUV LEDs to deliver a beautifully mixed, soft field of richly saturated colors.
Ideal for providing broad color washes for live events, theatrical productions, and architectural installations in both indoor and outdoor environments.

COLORdash Par H12IP

SKU: COLORDASHPARH12IP

Demo

COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

Features

Versatile Indoor/Outdoor Wash

A rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed.

Weatherproof Connections

Features IP-rated power and DMX connections to ensure reliable operation in any weather conditions.

Flicker-Free Operation

Adjustable Pulse Width Modulation (PWM) avoids flickering when being used on camera.

Remote Device Management

RDM compatibility provides added flexibility for fixture setup and configuration.

Smooth Dimming Curves

Selectable, smooth dimming curves eliminate flicker and choppiness in fades.

OLED Touchscreen Display

An easy-to-read OLED display includes password protection and a touchscreen interface for simple control.

Advanced Optics

Advanced optics provide exceptional color mixing and high-efficiency light output.

Dual-Purpose Yoke

A double-bracketed yoke also functions as a floor stand for versatile placement options.

Specifications

Download Product Specs

Optical

Light Source

12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
Color Temperature (range)

2,800 to 10,000 K
Installed Optics

15°
Beam Angle

22°
Field Angle

34°
Illuminance (total)

1180 lux @ 5 m
Selectable PWM

600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer

Electronic
Strobe Rate

0 to 30 Hz
Standalone Color Mixing

Yes
Color Temperature Presets

Yes
Dim Modes

4
Built-in Automated Programs

Yes

Construction/Physical

Dimensions

12.3 x 11.9 x 6.9 in (322 x 305 x 177 mm)
Weight

13.4 lb (6.1 kg)
Exterior Color

BLACK
Housing Material

Aluminum die-cast
Accessory Holder/Gel Frame size

8.5 in ( 216 mm)

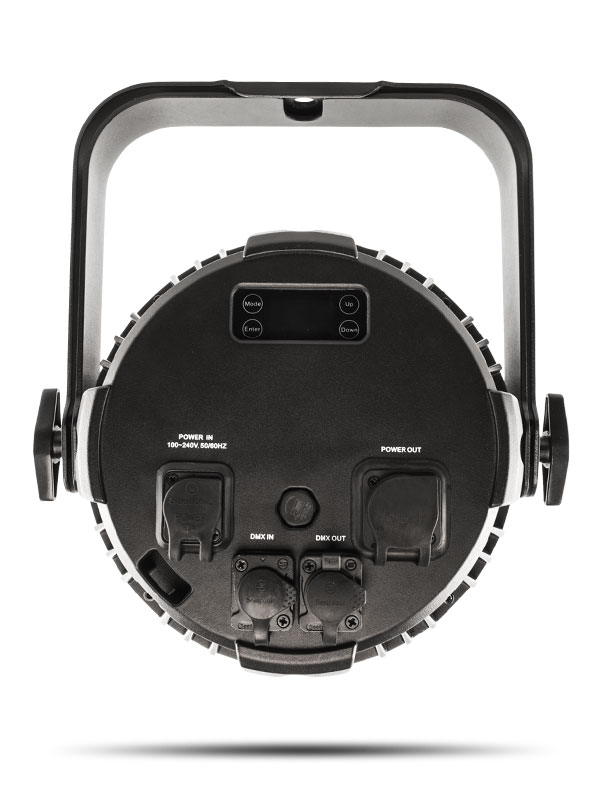

Connections

Power Connection

Edison (Local) plug to Seetronic Powerkon IP65
Power Input

Seetronic Powerkon IP65
Power Output

Seetronic Powerkon IP65
Data Connectors

5-pin IP65 XLR
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

DMX, RDM
DMX Channels

6, 8 or 13
Modes/Personalities

3 personalities (6, 8, 13)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

14 units @ 120 V; 23 units @ 208 V; 25 units @ 230 V
Power and Current

115 W, 0.963 A @ 120 V, 60 Hz
Power and Current

119 W, 0.575 A @ 208 V, 60 Hz
Power and Current

120 W, 0.529 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET
IP Rating

IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin IP or Non-IP DMX Cables

What's Included

Seetronic Powerkon IP65 power cord
Gel frame
