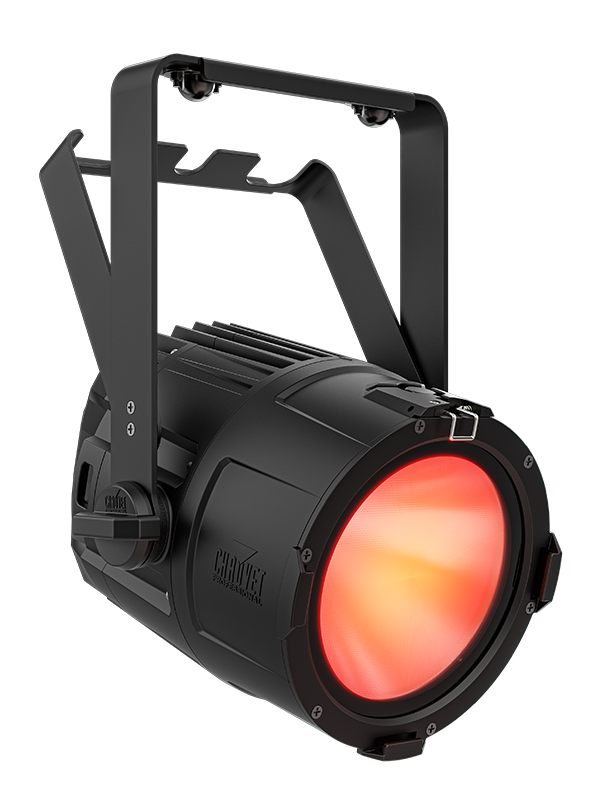

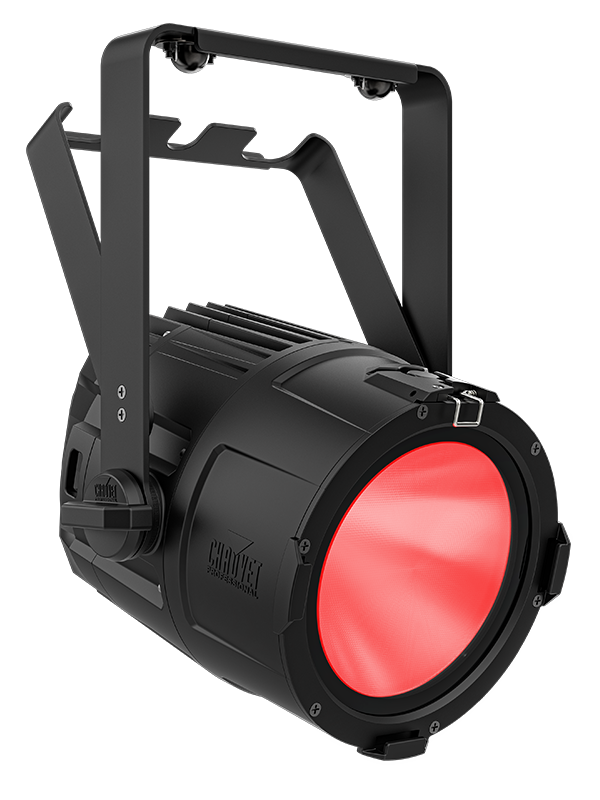

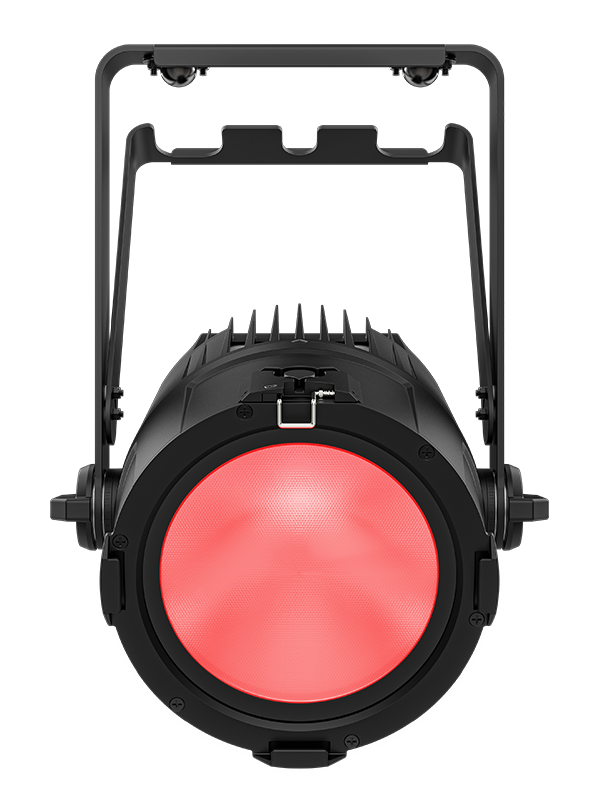

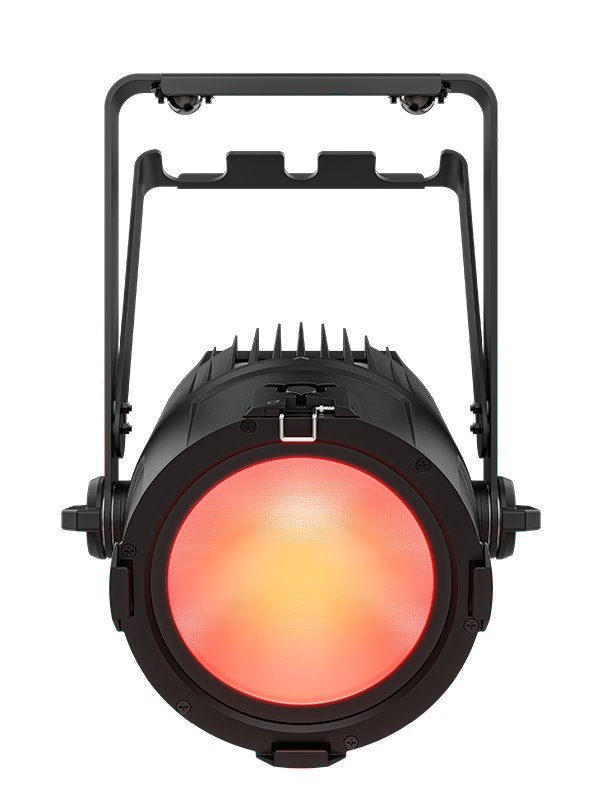

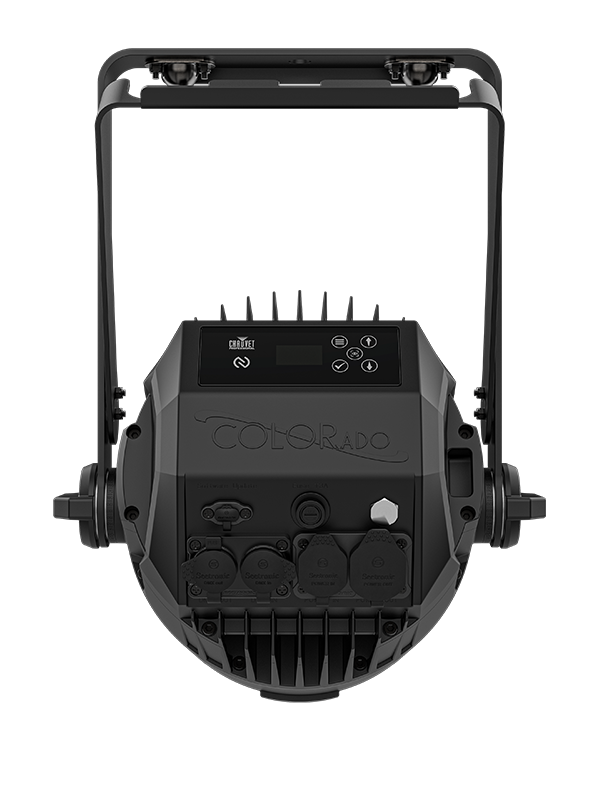

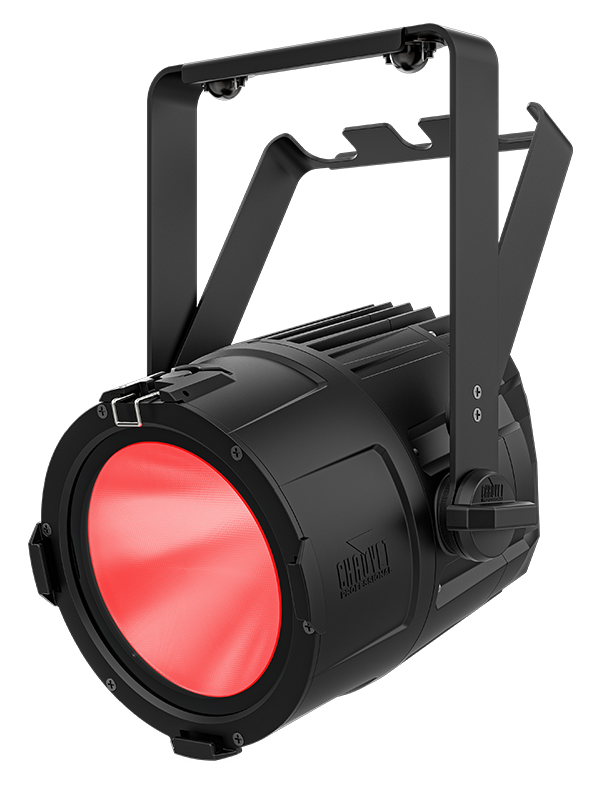

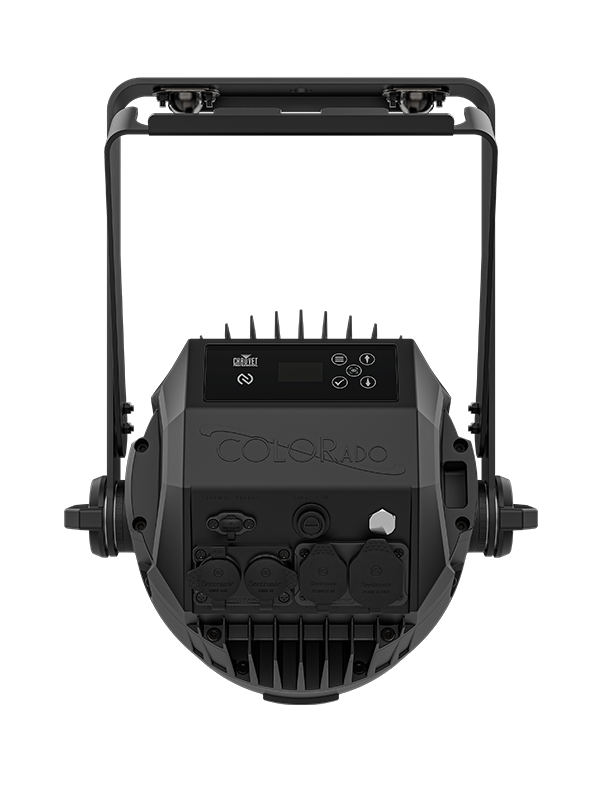

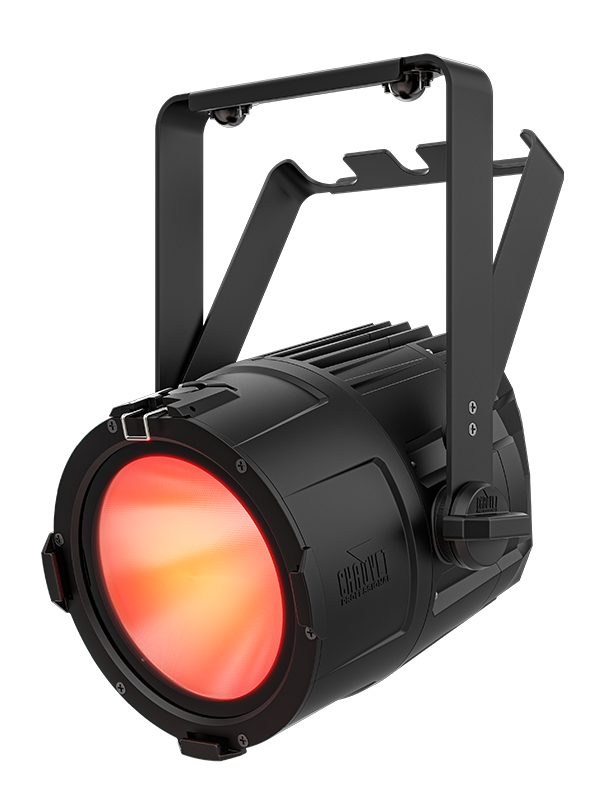

COLORado Solo Pod E

COLORado Solo Pod E is a versatile IP65-rated touring, rental, and production workhorse featuring integrated electronic Smart Frost that enables instant shifts from a narrow spot to wide washes and color block effects. Advanced optics and a high-power RGBL LED light engine are engineered to deliver fully homogenized output in both modes. 16-bit dimming and selectable PWM frequencies ensure flawless live and on-camera performance. Outdoor-rated power and data connectors allow for easy connections without proprietary cabling. Rigging and setups are fast and easy with its included omega bracket with ¼ turn adaptors and 7.5” accessory compatibility.

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Specifications

Optical

  • Light Source: 12 LEDs (quad-color RGBL) 180W, (1.3A), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 11,550 K
  • CRI @ 3200 K: 83.8
  • Beam Angle: 17.1°
  • Beam Angle (E-Frost): 54.7°
  • Field Angle: 30.9°
  • Field Angle (E-Frost): 128.9°
  • Lumens: 8160
  • Lumens (E-Frost): 7030 Illuminance: 2673 lux @ 5 m
  • Illuminance: 2673 lux @ 5 m
  • Illuminance (E-Frost): 220 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Frost: Electronic
  • Strobe Rate: 0 to 25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 11.14 x 8.18 x 15.96 in (283 x 208 x 405.5 mm)
  • Weight: 15.8 lb (7.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR,
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch or HSV
  • Modes/Personalities: 9 personalities (1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch, HSV)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 190 W, 1.59 A @ 120 V, 60 Hz
  • Power and Current: 187 W, 0.93 A @ 208 V, 60 Hz
  • Power and Current: 189 W, 0.86 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC,
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • COLORado Solo Pod E
  • Seetronic Powerkon IP65 power cord
  • Gel frame

Optional Accessories

  • Professional Clamps : CTC-50HC, CTC-50HCN
  • Riglink TR1 Cables
  • Riglink IP DMX cables
  • Ovation 7.5 Barndoor
