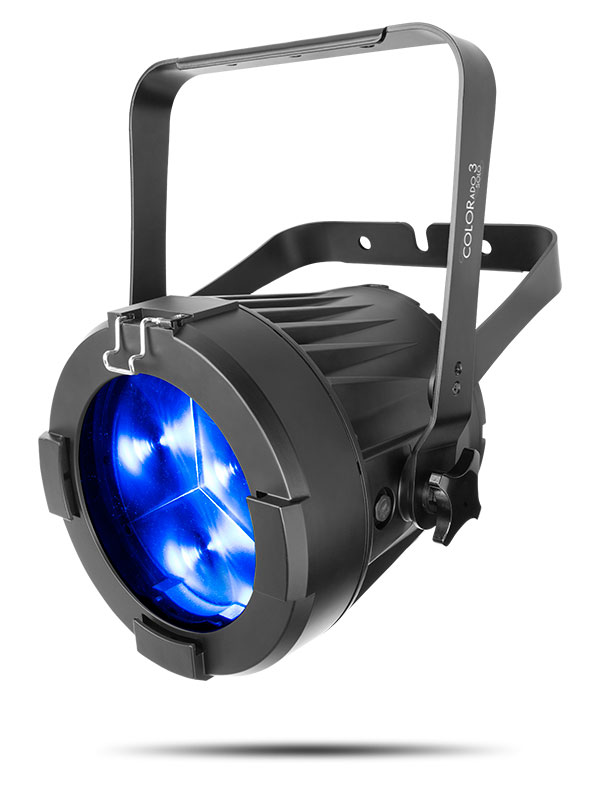

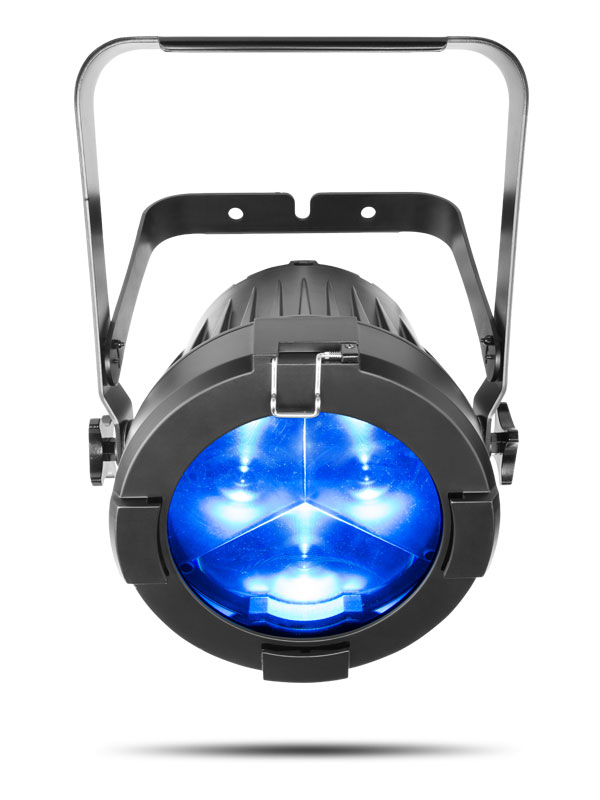

COLORado 3 Solo

Optical

• Light Source

  3 LEDs (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy

• Beam Angle

  4° to 34°

• Field Angle

  8° to 45°

• Zoom Range

  4° to 45°

• • Illuminance
    • Illuminance (4°)

      15,280 lux @ 5 m

    • Illuminance (34°)

      313 lux @ 5 m

• Selectable PWM

  600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer

  Electronic

• Shutter/Strobe

  Electronic

• Zoom

  Motorized

• Strobe Rate

  0 to 25 Hz

• Standalone Color Mixing

  Yes

• Color Temperature Presets

  Yes

• Dim Modes

  5

• Built-in Automated Programs

  Yes

• Customizable Programs

  Yes

• Recall Custom Programs

  Yes

Construction/Physical

• Dimensions

  9.84 x 12.36 x 16.25 in (250 x 314 x 413 mm)

• Weight

  19.8 lb (9 kg)

• Exterior Color

  Black

• Housing Material

  Magnesium

• Accessory Holder/Gel Frame Size

  7.5 in (191 mm)

Connections

• Power Connection

  Edison (Local) plug to Seetronic Powerkon IP65

• Power Input

  Seetronic Powerkon IP65

• Power Output

  Seetronic Powerkon IP65

• Data Connectors

  3- and 5-pin IP65 XLR

• Cable Length (power)

  5 ft (1.5 m)

Control

• Protocol(s)

  DMX, RDM

• DMX Channels

  9, 12, or 17

• Modes/Personalities

  4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Electrical

• Input Voltage

  100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking

  8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V

• Power and Current

  187 W, 1.580 A @ 120 V, 60 Hz

• Power and Current

  181 W, 0.909 A @ 208 V, 60 Hz

• Power and Current

  175 W, 0.869 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications

  CE, MET, FCC

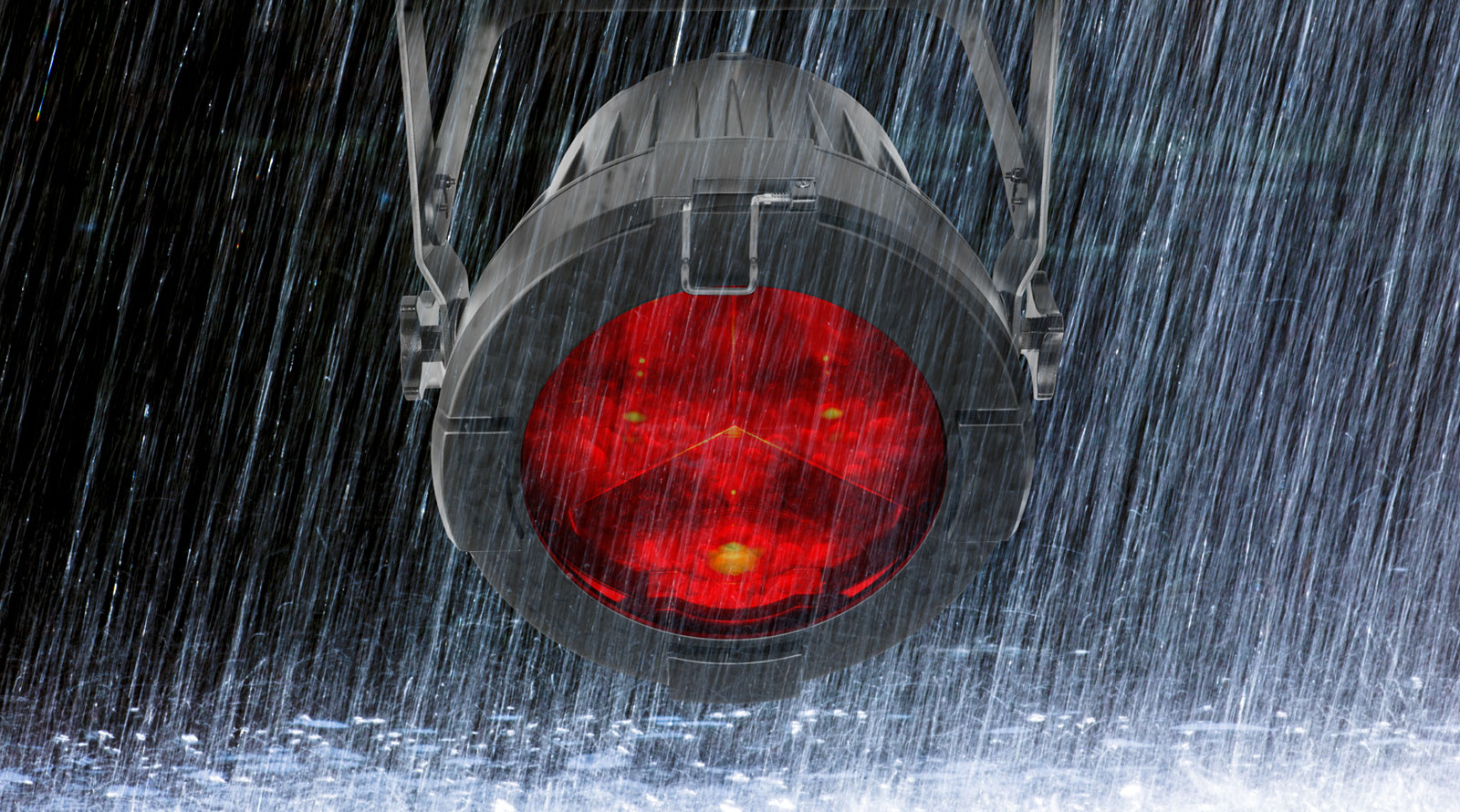

• IP Rating

  IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
