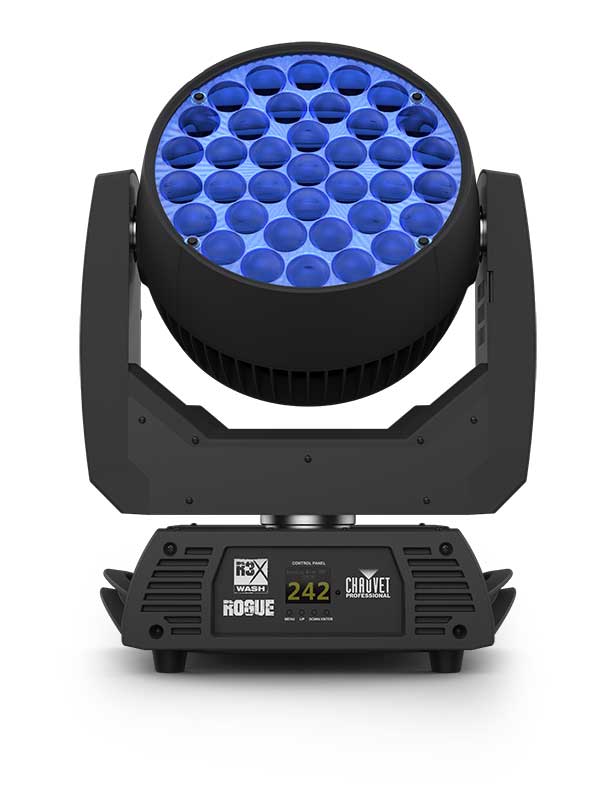

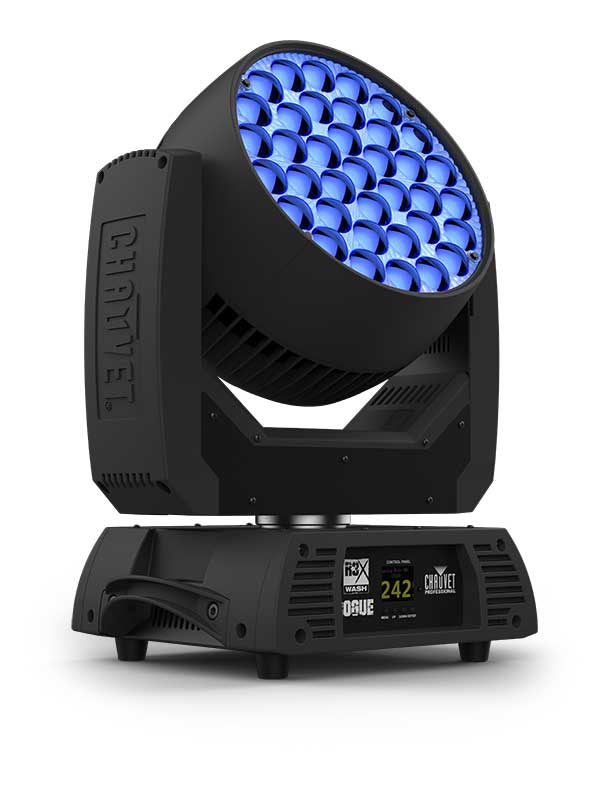

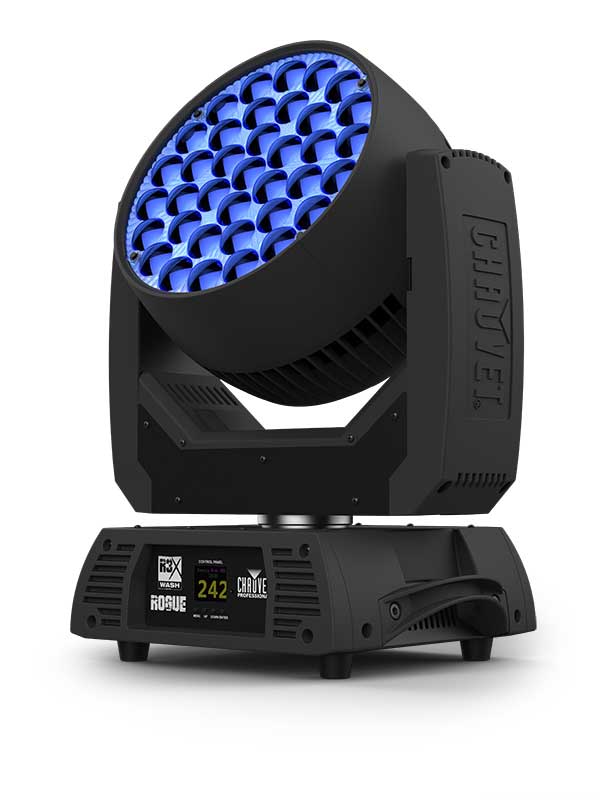

Rogue R3X Wash
A feature-packed moving wash workhorse, the Rogue R3X Wash outputs a bright, evenly dispersed light from its 37 RGBW quad-LEDs, offering nine zones of pixel control and a versatile 12° to 49° zoom range.
Ideal for rental and production inventories, this fixture provides the durability and flexibility needed for concerts, corporate events, and a wide range of live stage applications.
-
Delivers bright, consistent washes using thirty-seven high-power 25 W RGBW quad-LEDs.
-
Provides a versatile 9.3° to 62.6° motorized zoom for broad coverage or tight beams.
-
Creates dynamic pixel mapping effects with nine individually controllable zones of LEDs.
-
Ensures smooth fades and flicker-free operation with 16-bit dimming and selectable PWM.
-
Includes 3-pin and 5-pin DMX I/O and RDM for remote addressing and simplified setup.
-
Features a calibrated 7500 K white point and a mode to match legacy fixture output.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Rogue R3X Wash
Rogue R3X Wash is a feature packed moving wash workhorse ideal for rental and production inventories. It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (25 W) RGBW quad-LEDs. A quick moving zoom range of 12° – 49° gives it the spread to cover large areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.
Features
RGBW LED Wash Fixture
A fully featured yoke wash fixture with powerful RGBW LEDs, zone control, and zoom.
16-Bit Dimming
Achieve exceptionally smooth fades with high-resolution control over the master dimmer and individual colors.
High-Power LEDs
Equipped with thirty-seven bright 25-watt RGBW LEDs for a powerful light output.
Professional DMX Connections
Includes both 3-pin and 5-pin DMX input and output connections for versatile setup options.
Nine-Zone LED Control
Create stunning pixel mapping effects using nine individually controllable zones of LEDs.
Excellent Color Mixing
A unique lens design provides superior color blending and a smooth, even wash.
Fast Pan and Tilt
Delivers rapid and smooth pan and tilt movement for dynamic positioning and effects.
RDM Enabled
Allows for remote addressing and troubleshooting, simplifying setup and maintenance.
Calibrated White Point
Features a user-selectable calibrated white mode that produces 7500 K at full output.
Legacy Fixture Matching
A selectable maximum output mode allows for seamless matching with legacy Rogue R3 Wash fixtures.
Selectable PWM
Offers multiple Pulse Width Modulation options to ensure flicker-free operation on camera.
Distinct Dimming Modes
Choose from six different dimming modes to accommodate a variety of dimming requirements.
Universal Mounting Bracket
The included Omega mounting bracket is compatible with all Rogue and Maverick series fixtures.
OLED Display
An easy-to-read OLED display with a simple menu makes onboard configuration effortless.
Flexible DMX Profiles
Offers both simple and complex DMX channel profiles for enhanced programming versatility.
Latest News
Complete Your Rig
Specifications
Optical
-
Light Source
37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
-
Color Temperature (range)
2,800 to 10,000 K
-
Beam Angle
9.3° to 33.9°
-
Field Angle
11.6° to 49.5°
-
Cutoff angle
13.1° to 62.6°
-
Zoom Angle
9.3° to 62.6°
-
Lumens – Source
17,000
-
Lumens – Output
13,440
-
-
Illuminance
-
Illuminance (9.3°)
18,260 lux @ 5 m
-
Illuminance (62.6°)
1,556 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
-
Pan and Tilt
540°/230°
-
Pan and Tilt Ranges
180°, 360°, 540° Pan/90°, 180°, 230° Tilt
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 20 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Curves
4
-
Built-in Automated Programs
Yes
-
Customizable Programs
No
-
Recall Custom Programs
No
Construction/Physical
-
Dimensions
15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
-
Weight
38.5 lb (17.46 kg)
-
Exterior Color
Black
-
Housing Material
High-impact flame-retardant polymer

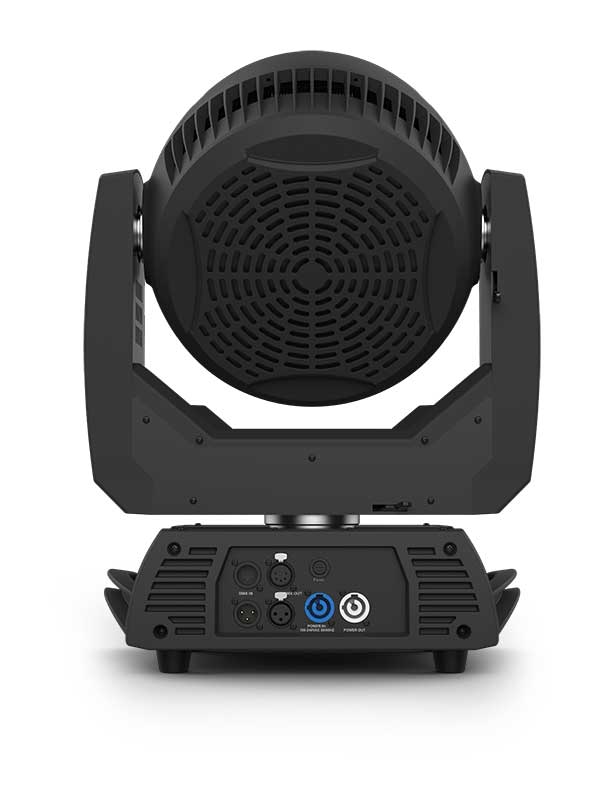

Connections
-
Power Connection
Edison (local) plug to Neutrik® powerCON®
-
Power Input
Neutrik® powerCON®
-
Power Output
Neutrik® powerCON®
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
21, 27, 62, 71, 107
-
Modes/Personalities
5 personalities
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
-
Power and Current
661 W, 5.60 A @ 120 V, 60 Hz
-
Power and Current
653 W, 3.136 A @ 208 V, 60 Hz
-
Power and Current
650 W, 2.85 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
-
Noise Levels
-
Noise Level (Idle)
40.1 dB(A) @ 1 m
-
Noise Level (Max)
43.1 dB(A) @ 1 m
-
Noise Level (Auto)
40.1 dB(A) @ 1 m
-
Noise Level (Eco)
41.5 dB(A) @ 1 m
-
Noise Level (Full)
44.8 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- RigLink PowerCon cables
- Rig Link DMX Cables
- Flight Case: CP4CASER3W
- UPLOAD 08
What's Included
- Rogue R3X Wash
- Neutrik® powerCON® power cord
- 2 Omega brackets with mounting hardware
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Rogue R3X Wash Quick Reference Guide | Download |
Manuals | Rogue R3X Wash User Manual | Download |
DMX | Rogue R3X Wash – DMX Chart | Download |
Other | Rogue R3X Wash – 2D CAD File | Download |
Manuals | Rogue R3X Wash – 3D CAD File | Download |
Other | Rogue R3X Wash – Firmware | Download |
Manuals | Rogue R3X Wash Photometrics Report | Download |
Manuals | Rogue R3X Wash – Acoustic Reports | Download |
Rogue R3X Wash FAQ’s
The Rogue R3X Wash is a professional moving head light that drenches stages and event spaces in a bright, smooth field of color. Its motorized zoom allows you to easily adjust the beam from a narrow spot to a wide flood, making it perfect for covering both small and large areas with vibrant, evenly mixed colors.
Yes, it is designed for creating dynamic visual effects. Its lights can be controlled in nine different zones, allowing lighting designers to create eye-catching patterns, color chases, and other animated looks beyond simple color washing.
Absolutely. The Rogue R3X Wash is engineered to be flicker-free on camera, which makes it an ideal choice for live streams, television broadcasts, and any event being recorded on video. This ensures a clean, professional look without visual interference.
