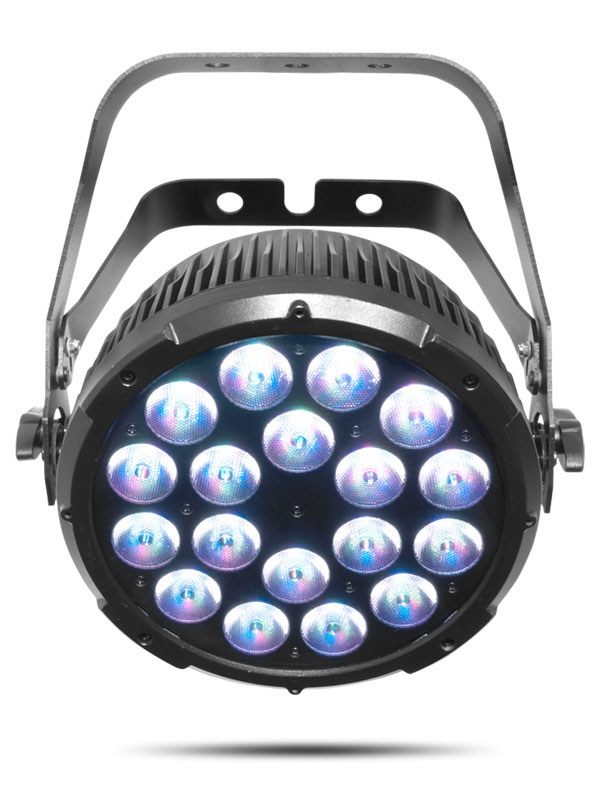

COLORdash Par-Quad 18

A compact and durable PAR-style wash light powered by 18 quad-color RGBA LEDs, designed to produce a broad spectrum of saturated colors and whites without multi-colored shadows.
Perfect for theatrical productions, mobile entertainers, and architectural applications where a versatile and easy-to-deploy color wash with simplified power and data connections is needed.

Features

Flexible DMX Control

Choose between 4, 6, or 10 DMX channel modes for versatile programming options.

Silent Flicker-Free Operation

The unit operates without any noise or light flicker, making it ideal for video production and quiet environments.

Lightweight and Easy to Install

Its lightweight design simplifies handling and allows for a quick and effortless installation process.

Durable Metal Construction

A robust metal housing provides enhanced durability to withstand the rigors of frequent use.

Specifications

Download Product Specs

Optical

Light Source

18 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
Color Temperature (range)

2800 to 10000 K
Installed Optics

20°
Beam Angle

18°
Field Angle

32.5°
Illuminance

1,210 lux @ 5 m
PWM Frequency

600 Hz

Dynamic Effects

Dimmer

Electronic
Shutter/Strobe

Electronic
Strobe Rate

0 to 20 Hz
Standalone Color Mixing

Yes
Color Temperature Presets

Yes
Built-in Automated Programs

Yes

Construction/Physical

Dimensions

12.7 x 11.7 x 4.1 in (323 x 298 x 106 mm)
Weight

10.2 lb (4.6 kg)
Exterior Color

Black
Accessory Holder/Gel Frame Size

9.25 in/235 mm accessories

Connections

Power Connection

Edison plug to Neutrik powerCON
Power Input

Neutrik powerCON
Power Output

Neutrik powerCON
Data Connectors

3- and 5-pin XLR
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

DMX
DMX Channels

4, 6 or 10
Modes/Personalities

3 personalities (4CH, 6CH, 10CH)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking

13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V, 25 units @ 240 V
Power and Current

118 W, 1.00 A @ 120 V, 60 Hz
Power and Current

116 W, 0.59 A @ 208 V, 60 Hz
Power and Current

115 W, 0.54 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET
IP Rating

IP20, dry location

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3- or 5-pin DMX Cables

What's Included

COLORdash Par-Quad 18
Neutrik powerCON power cord
Gel frame holder (9.25 in/235 mm accessories)
Gel frame

Questions or Concerns?

Let us know, we’re here to help! Contact Us

Downloads

Download All

Manuals	COLORdash Par-Quad 18 Quick Reference Guide	Download
Manuals	COLORdash Par-Quad 18 User Manual	Download
Manuals	COLORdash Par-Quad 18 DMX Chart	Download
Manuals	COLORdash Par-Quad 18 CAD	Download
Manuals	COLORdash Par-Quad 18 ShowXpress Profile	Download
Photometrics	COLORdash Par Quad 18 IES File	Download
Photometrics	COLORdash Par-Quad 18 Photometrics Report	Download

Latest Articles

Browse Articles

COLORdash Par-Quad 18 FAQ’s

Quickly find answers to common questions about setup, operation, and features of the COLORdash Par-Quad 18

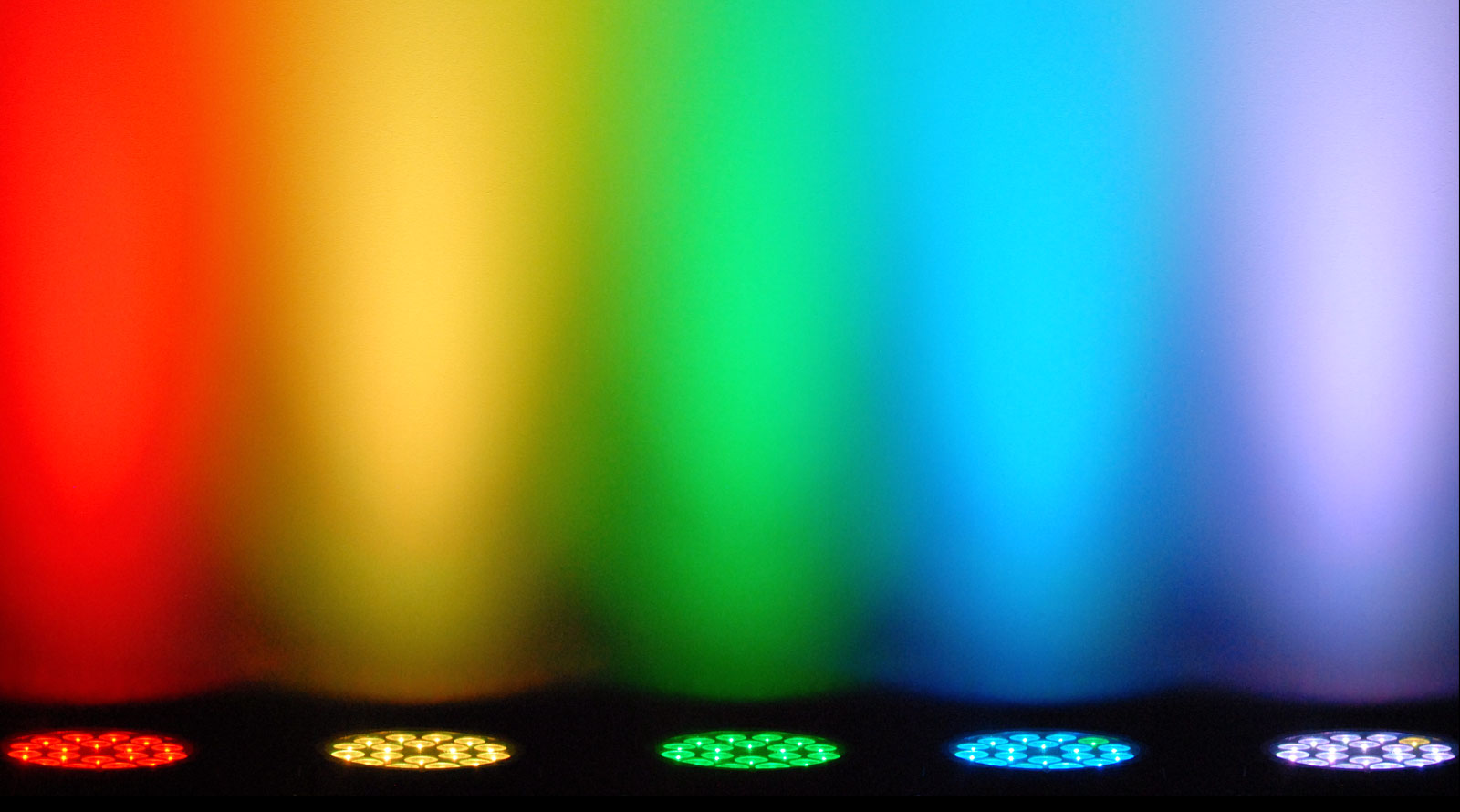

What kind of colors can the COLORdash Par-Quad 18 create?

The COLORdash Par-Quad 18 uses special quad-color (RGBA) LEDs. The addition of Amber to the standard Red, Green, and Blue allows it to produce a vast palette of colors, from soft pastels to deep, saturated hues, and even natural-looking warm whites. This technology ensures your colors look smooth and uniform, without distracting multi-colored shadows.

How easy is it to set up the COLORdash Par-Quad 18?

Setup is designed to be simple. The fixture includes a split-yoke bracket that allows it to be hung on a truss or stand on the floor without needing extra accessories. It also features power linking, which lets you connect multiple lights together from a single power outlet, reducing cable clutter and speeding up installation.

Is the COLORdash Par-Quad 18 suitable for quiet environments or video?

Yes, absolutely. The COLORdash Par-Quad 18 is designed for silent, flicker-free operation, making it ideal for use in quiet settings like theaters, houses of worship, and on-camera for video production. It also includes built-in automated programs, allowing it to run impressive light shows on its own without a separate controller.
