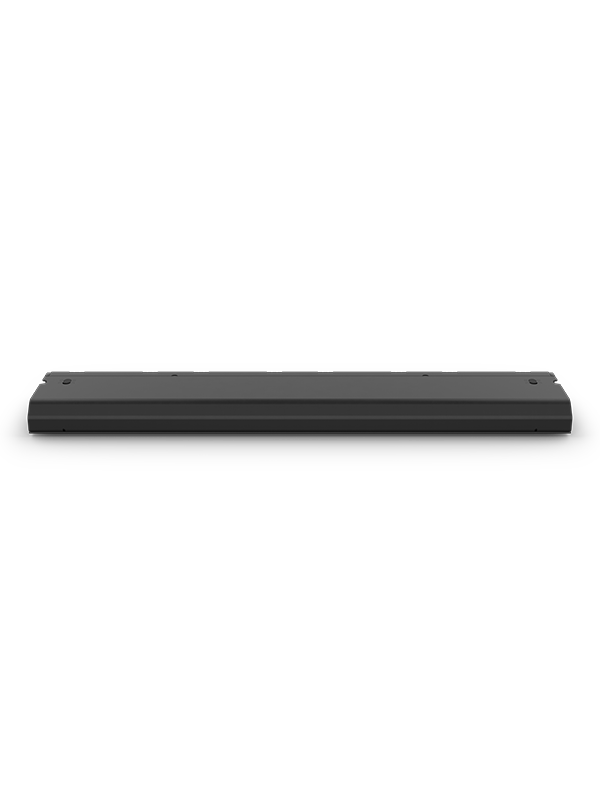

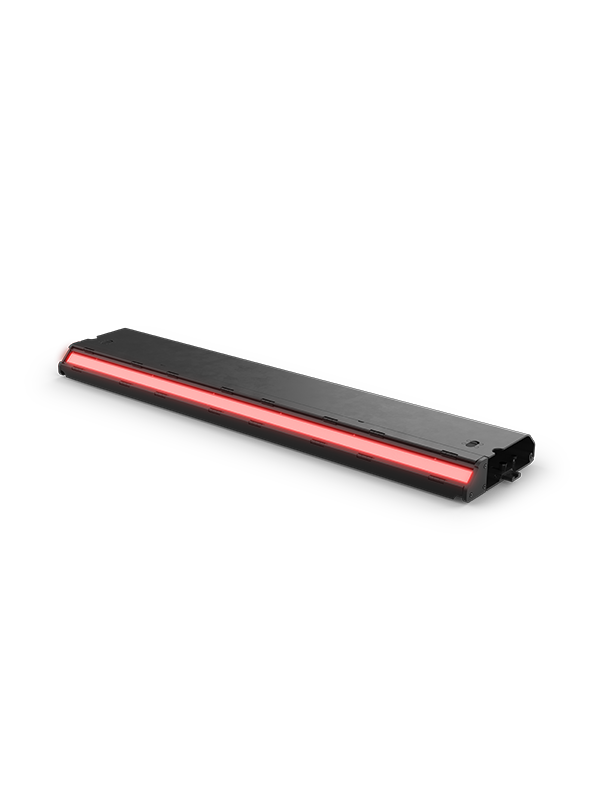

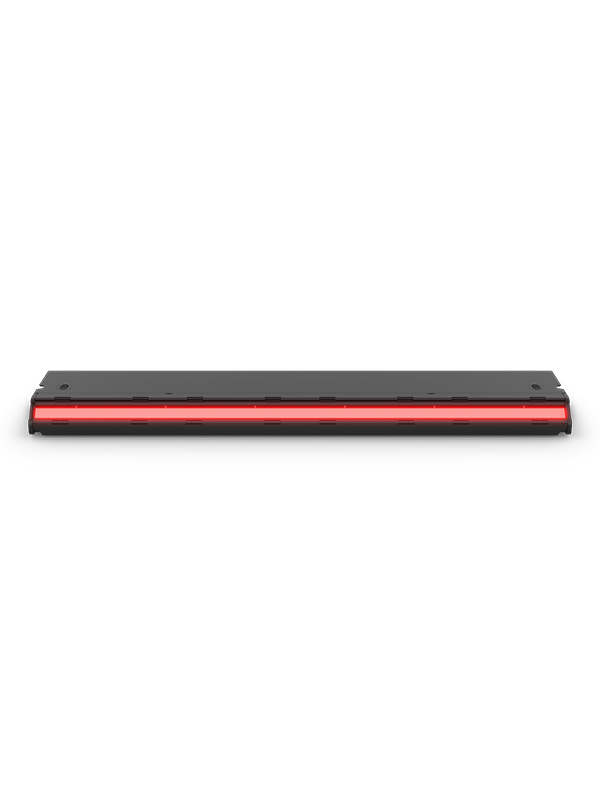

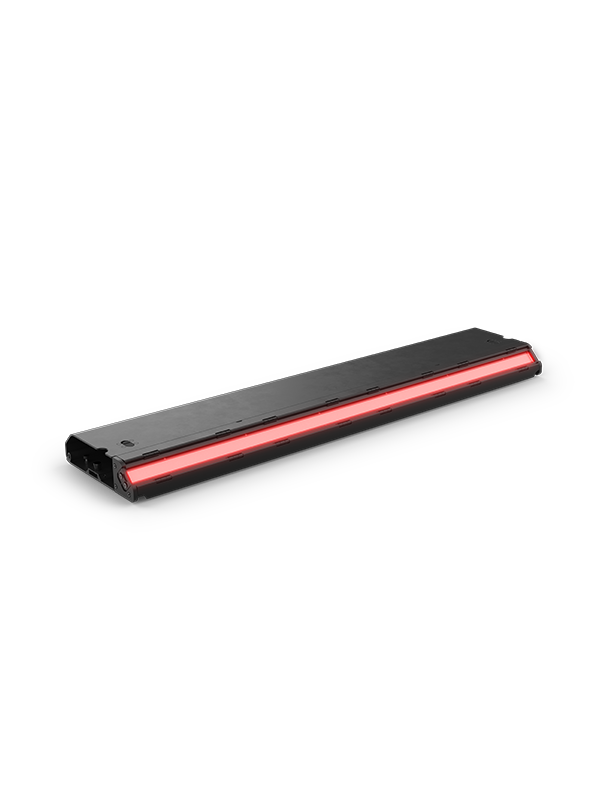

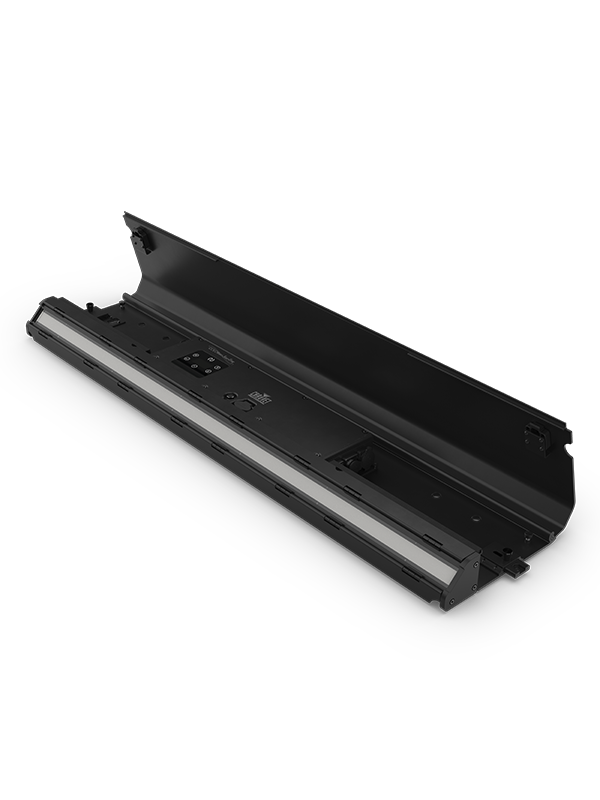

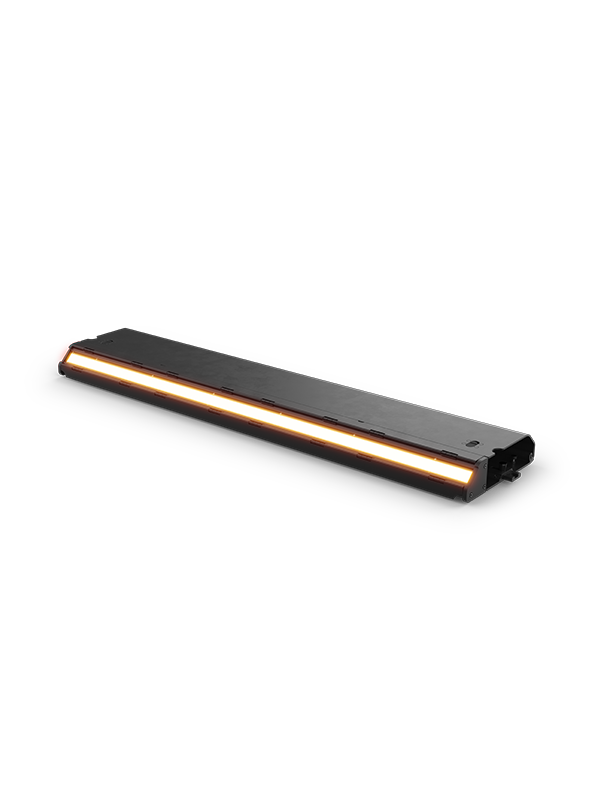

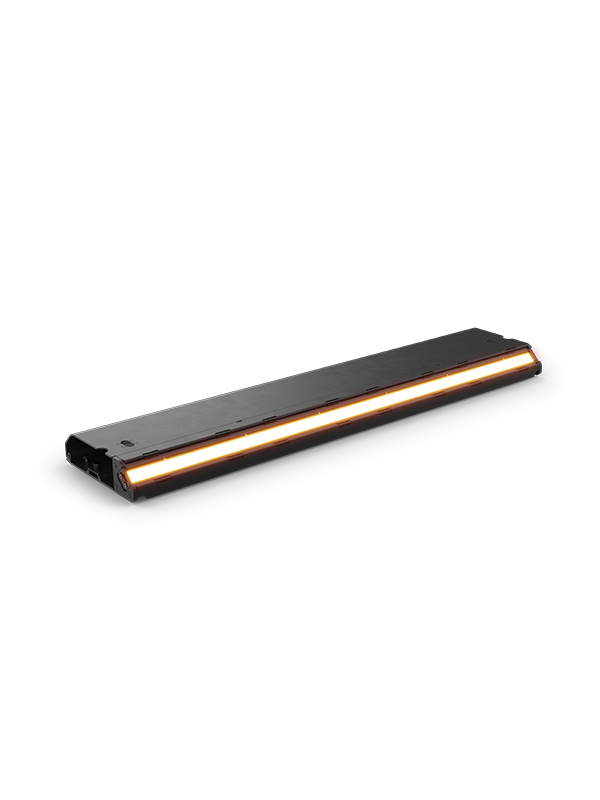

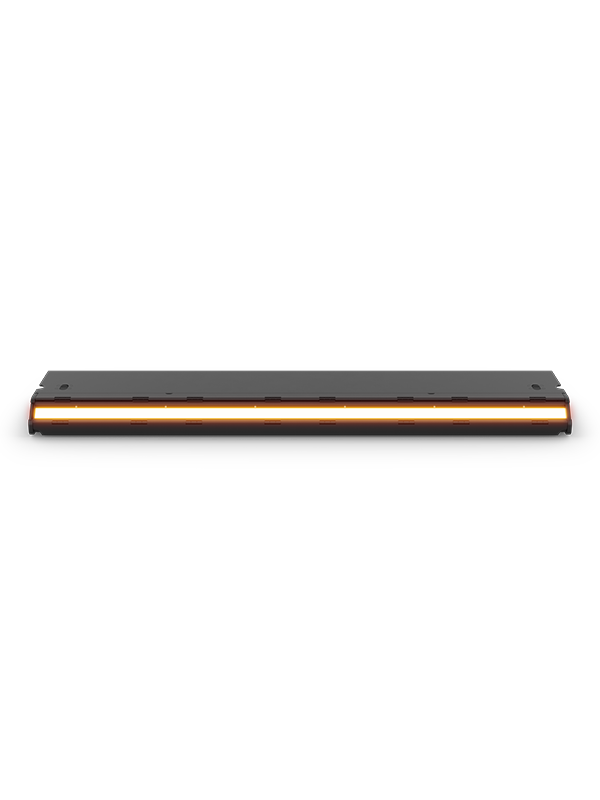

COLORado Solo Edge 3

This low-profile 1-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Specifications

Optical

  • Light Source: 112 LEDs (Quintuple-color-RGBWL) , K 20,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 6600 K
  • CRI (2800): 93
  • Beam Angle: 111° (Horizontal)
  • Beam Angle: 120° (Vertical)
  • Field Angle: 134° (Horizontal)
  • Field Angle: 161° (Vertical)
  • Lumens: 17,698
  • Illuminance (total): 221 lux @ 5 m
  • PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
  • Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Framing Shutters: No
  • Strobe Rate: 0 to 30Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes/No

Construction / Physical

  • Dimensions: 39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
  • Weight:22 lb. (10 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy and Aluminum diecast

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, DMX, sACN
  • DMX Channels:
    1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
    2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
    4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
  • Art-Net Channels:
    1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
    2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
    4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
  • Modes/Personalities: personalities (32)
  • Frequency (operating): 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz or 25KHz

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 ; 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
  • Power and Current: 242 W, 2.03 A @ 120 V, 60 Hz
  • Power and Current: 237 W, 1.18 A @ 208 V, 60 Hz
  • Power and Current: 236 W, 1.06 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, ROHS
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 4 °F to 113 °F (-15 °C to 45 °C)

What's Included

  • COLORado Solo Edge 3
  • Seetronic Powerkon IP65 power cord
  • Power and Data linking cables
  • Stealth Filter
  • Omega bracket with mounting hardware
