New

COLORado Solo Edge 1

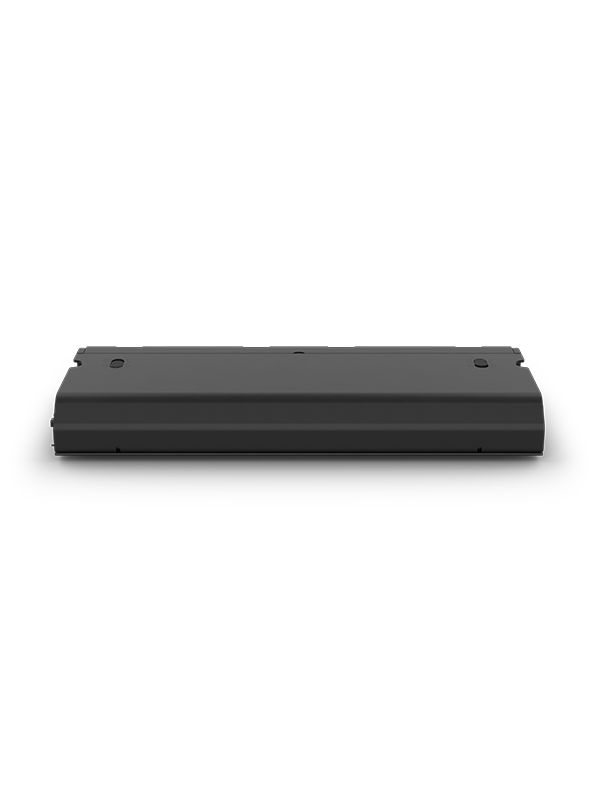

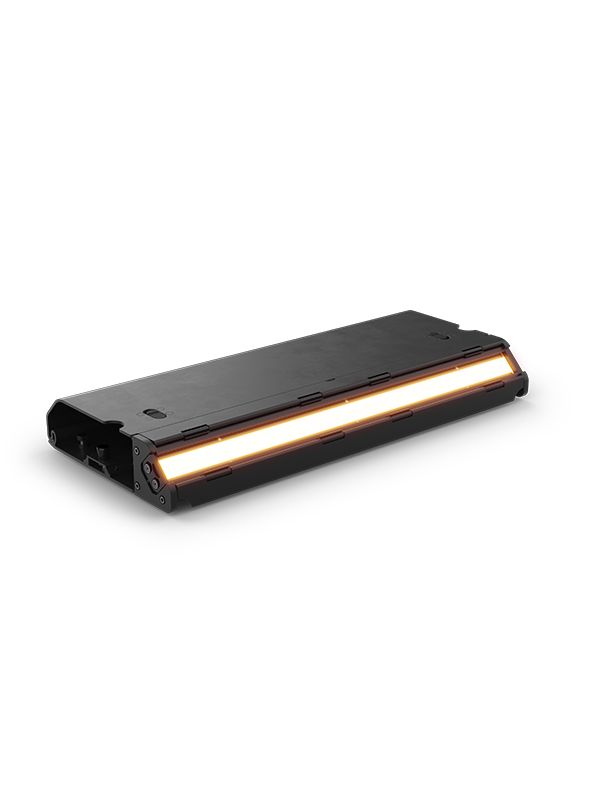

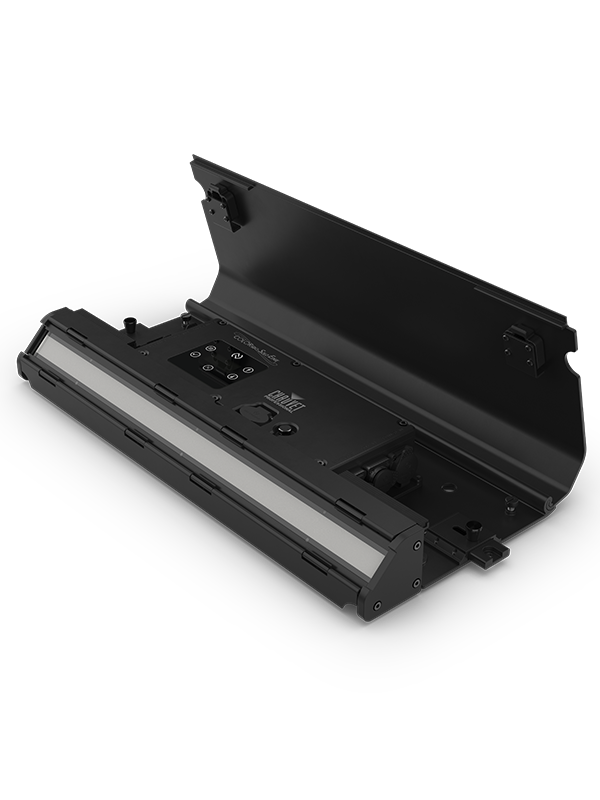

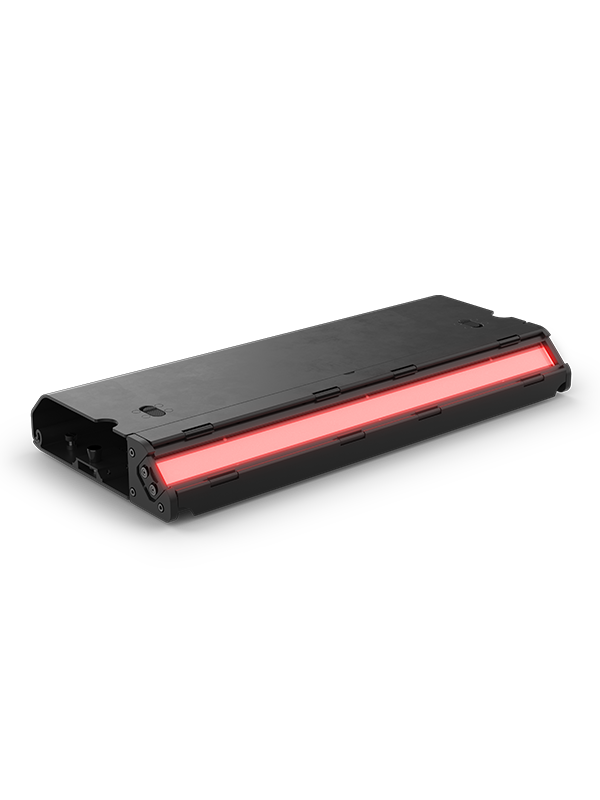

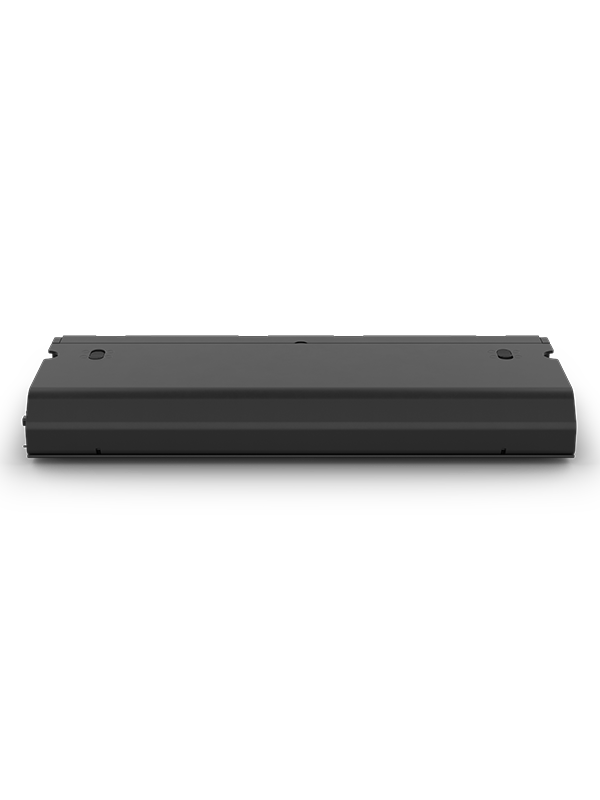

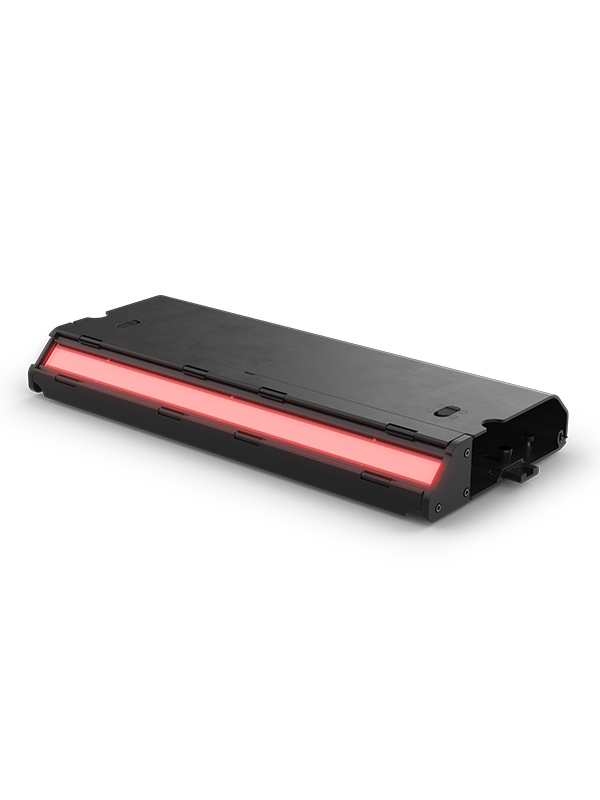

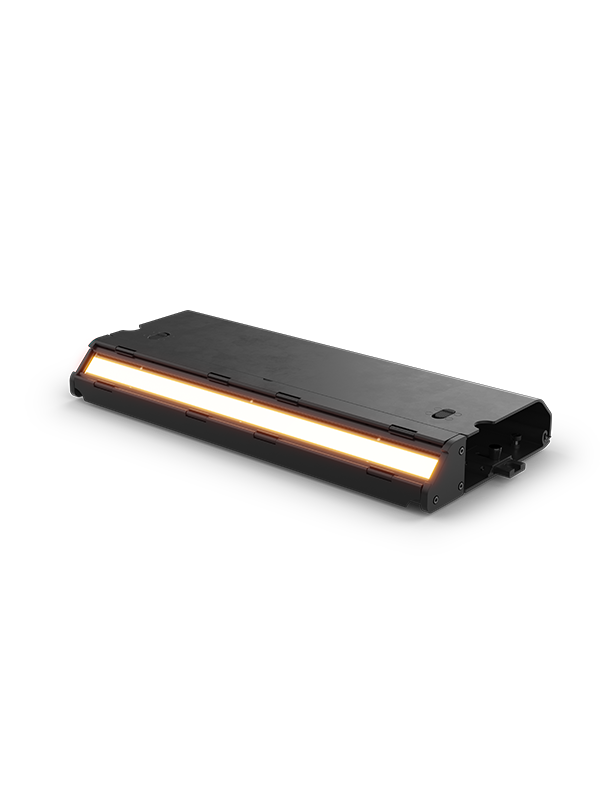

This low-profile 0.5-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Specifications

Optical

  • Light Source: 56 LEDs (Quintuple-color-RGBwWL), K 20,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 6350K
  • CRI (2800): 96.2
  • Beam Angle: 111.1° (Horizontal)
  • Beam Angle: 120.1° (Vertical)
  • Field Angle: 134.1 ° (Horizontal)
  • Field Angle: 161.4° (Vertical)
  • Lumens: 7,144
  • Illuminance (total): 104 lux @ 5 m
  • PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
  • Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Framing Shutters: No
  • Strobe Rate: 0 to 30Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes/No

Construction / Physical

  • Dimensions: 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)
  • Weight: 12.6 lb. (5.7kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy and Aluminum diecast

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, DMX, sACN
  • DMX Channels:
    1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
    2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  • Art-Net Channels:
    1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
    2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
  • Modes/Personalities: Personalities (22)
  • Frequency (operating): 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking:
  • Power and Current: 126 W, 1.05 A @ 120 V, 60 Hz
  • Power and Current: 125 W, .61 A @208 V, 60 Hz
  • Power and Current: 125 W, .55 A @230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, ROHS
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M6 GORE valve
  • Temperature (Ambient): 5 °F to 113 °F (-15 °C to 45 °C)

What's Included

  • COLORado Solo Edge 1
  • Seetronic Powerkon IP65 power cord
  • Power and Data linking cables
  • Stealth Filter
  • Omega bracket with mounting hardware

Optional Accessories

  • Professional Clamps : CTC-50HC, CTC-50HCN
  • Riglink TR1 Cables
  • Riglink IP DMX cables
  • Riglink IP Network cables
