DISCONTINUED

Amhaze II

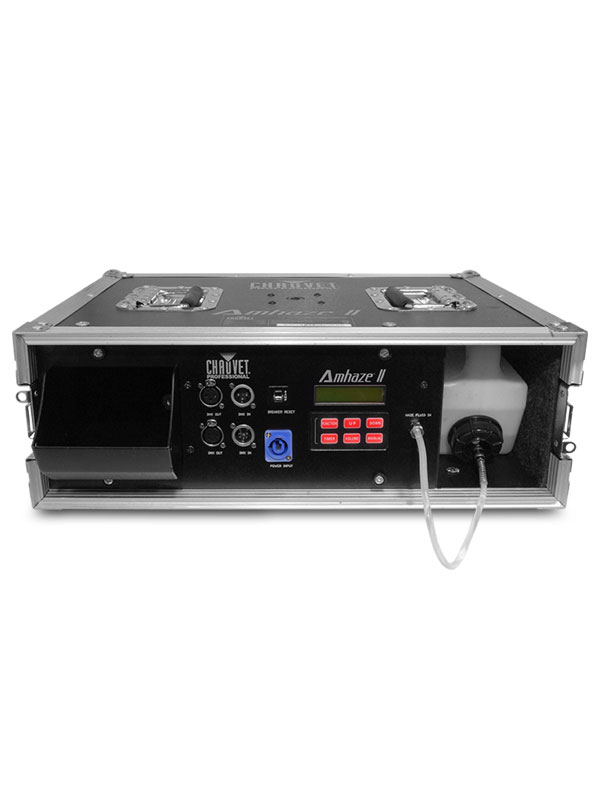

Amhaze II is a road-worthy water-based haze machine suited for large-scale applications. Amhaze II is built specifically to function with a wide variety of water-based haze fluids and features a durable, low-profile road case to survive the rigors of touring and production. The output and speed of haze can be easily adjusted via DMX or the LCD screen, and the unit comes equipped with an M13 threaded insert for hanging.

At a Glance

  • Vent accessory for directional haze flow

  • Tour-ready with a rugged road case and M13 threaded rigging insert

  • Works with a variety of different water-based haze fluid types for added versatility

  • Achieve continuous variable haze output and blower speed, adjusted via DMX or the LCD Screen

  • Professional water-based haze machine

Specifications

Dynamic Effects

  • Output: 11,000 cfm
  • Low Fluid Shutdown: No

Construction / Physical

  • Dimensions: 21.5 x 24.7 x 8 in (546 x 627 x 203 mm)
  • Weight: 41.2 lb (18.7 kg)
  • Exterior Color: Black
  • Tank Capacity: 0.92 gal (3.5 l)
  • Fluid Consumption: 18 ml/min

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 2
  • Modes/Personalities: 1 personality (2)
  • On-Board Control: Yes

Electrical

  • Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
  • Power and Current: 760 W, 6.3 A @ 120 V, 60 Hz
  • Power and Current: 250 W, 5 A @ 230 V, 50 Hz
  • Heat-up Time: 2 min
  • Breaker Size: 8 A

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location

What's Included

  • Amhaze II
  • Neutrik powerCON power cord

Required Accessories

Optional Accessories

Save and Print

Downloads

Amhaze II Quick Reference Guide
Amhaze II User Manual
Amhaze II DMX Chart
Amhaze II CAD FIle
Amhaze II ShowXpress Profile

Videos

CHAUVET Professional: Amhaze II
